Today I gave the “entomological interlude” during a talk about Ludwig van Beethoven‘s arrangement of Johann Wolfgang Goethe‘s poem “Flohlied” which is a part of “Faust“. The seminar was part of a Cultual Creativity series through the Musicology Division at the University of Illinois. (NB: I am that person who can not read music, yet can recognize Beethoven’s 9th Symphony as the “Die Hard” theme song.)

Das Flohlied (Flea Song) is part of the scene “Auerbach’s Cellar in Leipzig” in Faust I (First published around 1790). The song is about a king who loved a flea on which he lavished many riches. The flea is fitted with fine clothing and is made Head of State. The flea’s family members are also awarded high positions in the government. The other members of the King’s court did not dare speak up and complain. Instead they tried to cope with the biting and the itching, but what they really wanted to do was kill the little critters.

William Kinderman presented a talk on the political satire conveyed by Beethoven in the composers correspondence and in his work around the time Beethoven wrote the music for the Flea Song. For the performance Prof. Kinderman was joined by tenor Jerold Siena.


I was to provide a little bit of background about the life history of fleas – the entomological interlude. There is much to tell about fleas, but I only had 10 minutes, and was speaking to a non-science audience that was there for the music. But I felt up for the challenge!

I decided to have Goethe’s words dictate the organization of the presentation. Below are my slides, the translation of the poem and my notes.


Thank you very much for inviting me to give a little bit of background about fleas and help you connect this insect with both Goethe and Beethoven. (As an aside: This is an iconic drawing of a flea by Robert Hooke from his 1665 book Micrographia, which can be viewed here on the campus of the University of Illinois at the Rare Books and Manuscripts Library)

Slide02A king there was once reigning,
  Who had a goodly flea,
  Him loved he without feigning,
  As his own son were he!

Let’s picture ourselves in late 18th Century Western-Europe. Goethe opens das FlohLied, with a description of a King actually being quite fond of a flea. We may consider that odd, and of course it is, but I think it is important to keep in mind that at that time society viewed ectoparasites such as fleas, lice, ticks and bedbugs more favorably, merely as a nuisance. This view of ectoparasites did not really change until the mid-19th Century when it was discovered that arthropods such as mosquitoes could vector horrible diseases. And not until about 1900 was it known that fleas vectored the bacterium that causes the plague.

In other words, a poem or song about a highly regarded flea is not as strange in 1760 as it may seem now.

Slide03Some basic facts about fleas. Fleas are very small. The body of the flea is about 3mm long. Fleas belong to the insect order Siphonaptera, and there are about 2600 described species of fleas. Adult fleas feed on the blood of their mammalian or avian hosts. Only about a handful of the flea species live in close association with humans, and can use humans as a host but none are specialized on humans.

Fleas do not have wings, they are famous for their ability to jump – they have specialized legs. They have also physiological adaptations that help in dispersal. For instance, fleas are able, through the blood meal, to determine when a host rabbit is pregnant. In response female fleas will then start producing eggs. As soon as the baby rabbits are born, the female fleas make their way down to them and once on board they start feeding and laying eggs. After 12 days, the adult fleas make their way back to the mother. They complete this mini-migration every time the mother rabbit gives birth. So they don’t have to be able to fly or even jump very far to be able to disperse their offspring.

Slide04His tailor then he summon’d,
  The tailor to him goes;
  Now measure me the youngster
  For jerkin and for hose!

In the Flea Song the King calls upon dressmakers to make clothing for the fleas. Funny concept, of course, but not really that odd for that time period.

Around the time that Goethe wrote das FlohLied watchmakers tried to harness fleas, with tiny gold wires, to demonstrate their skills in fine manipulation.

In other parts of the world people also dressed up fleas. In Mexico there is a tradition of Pulgas Vestidas, where fleas are dressed and painted to represent people – such as brides and grooms. They are very very small – and probably only contain the head of the flea.

Slide05In satin and in velvet
  Behold the younker dressed;
  Bedizen’d o’er with ribbons,
  A cross upon his breast.
Prime minister they made him,
  He wore a star of state;
  And all his poor relations
  Were courtiers, rich and great.

The late 18th century was the start of the flea circus mania in Europe. It is not clear to me if by 1790 this had reached Germany. But it again shows how enamored people (including the King) were with fleas. This is a picture from the famous flea circus in Copenhagen’s Tivoli Gardens, which was open until the mid 1960s. Fleas would be caught and rigged up in a harness made of thin gold wires. These harnesses could then be attached to props. Fleas were made to pull relatively large objects. Or they were given a ball to juggle or kick. [Video]

Slide06The gentlemen and ladies
  At court were sore distressed;
  The queen and all her maidens
  Were bitten by the pest,
And yet they dared not scratch them,
  Or chase the fleas away.

In the poem Goethe mentions that the people at the King’s court are getting bit and that the bites start to get itchy.

This is a very good description of a flea bite. Fleas bite…and they suck!

They have mouth parts, that are basically a pair of sharp lancets with serrated edges and a hard, sharp, awl-like instrument. They make a puncture in the skin, opening up blood vessels, and then suck up the blood by creating a tube with their mouth parts.

The flea’s saliva may cause an allergic reaction that results in welts and itching. It is the itching that usually sends people to the doctor and pets to the vet.

Slide07As Professor Kinderman explained the representation of the flea’s jump is obvious in Beethoven’s music. The flea’s jump is an almost unbelievably fast, precise, and reliable motion.

Fleas can jump about 200 times their own body-length. The jump happens so fast that only about 5 years ago the high-speed camera technology was sophisticated enough to capture the jump in such a way that it could conclusively be shown what parts of the leg a flea uses to jump. [Video]

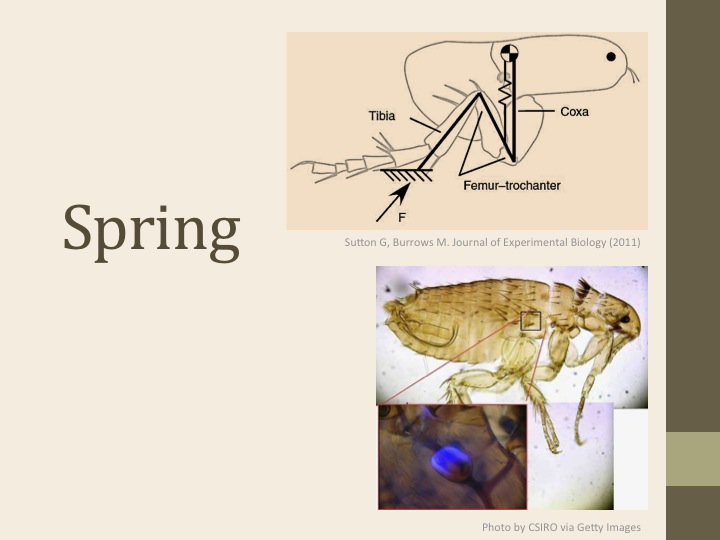

Slide08The energy for a flea leap comes from a spring inside the flea’s leg. This spring stores and then releases the energy needed to jump. Fleas first lock the joint between body and hind leg, and then they contract muscles within the body. This muscle contraction compresses part of the exoskeleton of the flea, most importantly a part of the body that contains the elastic protein resilin. So in the end, not just the muscle, but also the relatively rigid exoskeleton acts as a tensed spring. The lock on the hind legs is then released, and the rapid expansion of the spring releases the stored energy. The forces in the spring are transmitted through the leg, through the feet, to the ground, which propels the jump.

The resilin material is very interesting since it is very resilient, far more so than rubber we use in engineered devices. The flea can repeat this jump many times without suffering material fatigue.

Slide09This brings me to the all important insect cuticle, or exoskeleton. Insects do not have a skeletal system like we do. Insects are covered with this, at least in my eyes, amazing material, made from pretty simple building blocks, that, depending on the species and life stage of the insect, can be hard (think of a beetle) or soft (think of a caterpillar).

In this picture you can see that the cuticle of the flea is divided up into different segments, and that it may have some sensory hairs and glands – so it is not completely one rigid structure. This makes movement and interaction with the environment easier despite having an exoskeleton.

The cuticle is arranged hierarchically, and built from the bottom up – at atmospheric pressure and moderate ambient temperature – using materials that are readily available in nature. This manufacturing technique is not common in human manufacturing when we use lots of pressure, and heat, and nasty chemicals.

The cuticle is made up of different layers and these layers may not line up perfectly. This is a good thing. Sometimes a crack may appear but not be propagated further down, because the different hierarchical layers “stop” the crack. Again, we do no really engineer our materials with this level of resiliency.

(For more detail about the insect cuticle see posts on this blog here, here and here)

Of course, that fleas have such an amazing exoskeleton also has disadvantages…

Slide10If we are bit, we catch them
  And crack them without delay.

You can’t just squash a flea. Similar to bubble wrap if you push on a flea it compresses, it does not pop.

Since the flea’s cuticle is also made up of these different layers, and the layers are not very stiff it makes it that fleas are very difficult to kill. You cannot just step on them, stomp them, or crush them. You actually have to puncture the cuticle, maybe with your nails, and then bend them until they snap – “KNICKEN” as Goethe called it.

And then if you hold your finger on the flea you can also suffocate it “ERSTICKEN”, but this will not be so easy since fleas have multiple entry points for air (not just the mouth area as in mammals).

(Actually the best way to kill a flee is by rubbing it between your fingers so that the legs fall off…then it will not be able to find a new host and continue feeding

Slide11At the risk of going slightly off topic here I want to point out that much of the research done on fleas during the twentieth century was done by Dame Miriam Rothschild. Yes, she was a member of the famous bankers family. Miriam had become interested in fleas because her father Charles had started an impressive flea collection, and her uncle Walter a Natural History Museum.

Miriam was the one who first described the endocrine regulation of reproduction in fleas, as I described, and was also the driving force behind figuring out how fleas jump – the biomechanics of the jump.

I cannot resist these wonderfully inspiring pictures of Rothschild in her (privately funded) lab with her children. She certainly is an inspiration to female scientists like myself.

Thank you so much for giving me the opportunity to share the wonderful lives of fleas with you.

Slide12FleaSongFlyer (Art work by Nils Cordes)


The insect cuticle: (2) hierarchical structure

This post is part of a series on the insect cuticle as a biological material that can inspire novel engineered materials. The characteristics of the cuticle, setting it apart from most synthetic/engineered materials, will be discussed in this series. The introduction to the series can be found here.

Structural hierarchy, and thus strength, is intrinsic

The insect cuticle can have great strength and flexibility, much greater than if it were just made up of stacked sheets of chitin and protein. The cuticle also exhibits energy absorption properties. This is all due to its ingenious structure. It has a complex hierarchical micro-architecture that spans multiple length scales from the nanoscale to the macroscale, which exhibit a remarkable combination of stiffness, ability for crack deflection, low weight and strength. The cuticle’s special self-assembly characteristics, as those of other biological materials, have attracted interest from materials scientists for the development of laminated composite materials and from bioengineers interested in molecular scale self-assembly.

Many biological materials exhibit structural hierarchy, and some have been studied in more detail than insect cuticle: nacre (mother-of-pearl) and bone. There is often hierarchy within hierarchy, at the nano-, micro-, all the way to the meso-level.  Hierarchical structure is primarily due to the outcome of developmental pathways of biological systems that create the material. Having hierarchy within a biological material is intrinsic. The only forces acting during material synthesis are intermolecular, and are thus very weak and work on only a short range.

This can result in very beneficial properties.

  • areas and layers that are softer than the rest can greatly affect the failure properties of a material because these interfaces can stop cracks, or divert them.
  • The hierarchical material’s microstructures can exhibit dramatic increases in compressive strength compared with that of solids of similar density with conventional structure.

Since human-made materials are often made using a top down approach, by forcing structure and shape onto a material, we do not often see structural hierarchies in engineered materials, or only to a limited extend.

Characteristic Figure from "Insects Did It 1st" book by Akre, Paulson and Catts. Illustration by E. Paul Catts.

Characteristic figure from “Insects Did It 1st” book by Akre, Paulson and Catts. This illustration by E. Paul Catts accompanied the chapter on plywood/cuticle. Plywood is a human-made material that is layered – if not quite in a hierarchical manner.

The mechanical properties of biological materials, such as the insect cuticle, may give insights into the design of more advanced engineered composites.

The layers

Meso-level hierarchy

Strictly speaking the insect’s integument is comprised of the epidermal cell layer (epidermis) and the cuticle. The Integument itself is build upon a basement membrane (basal lamina).

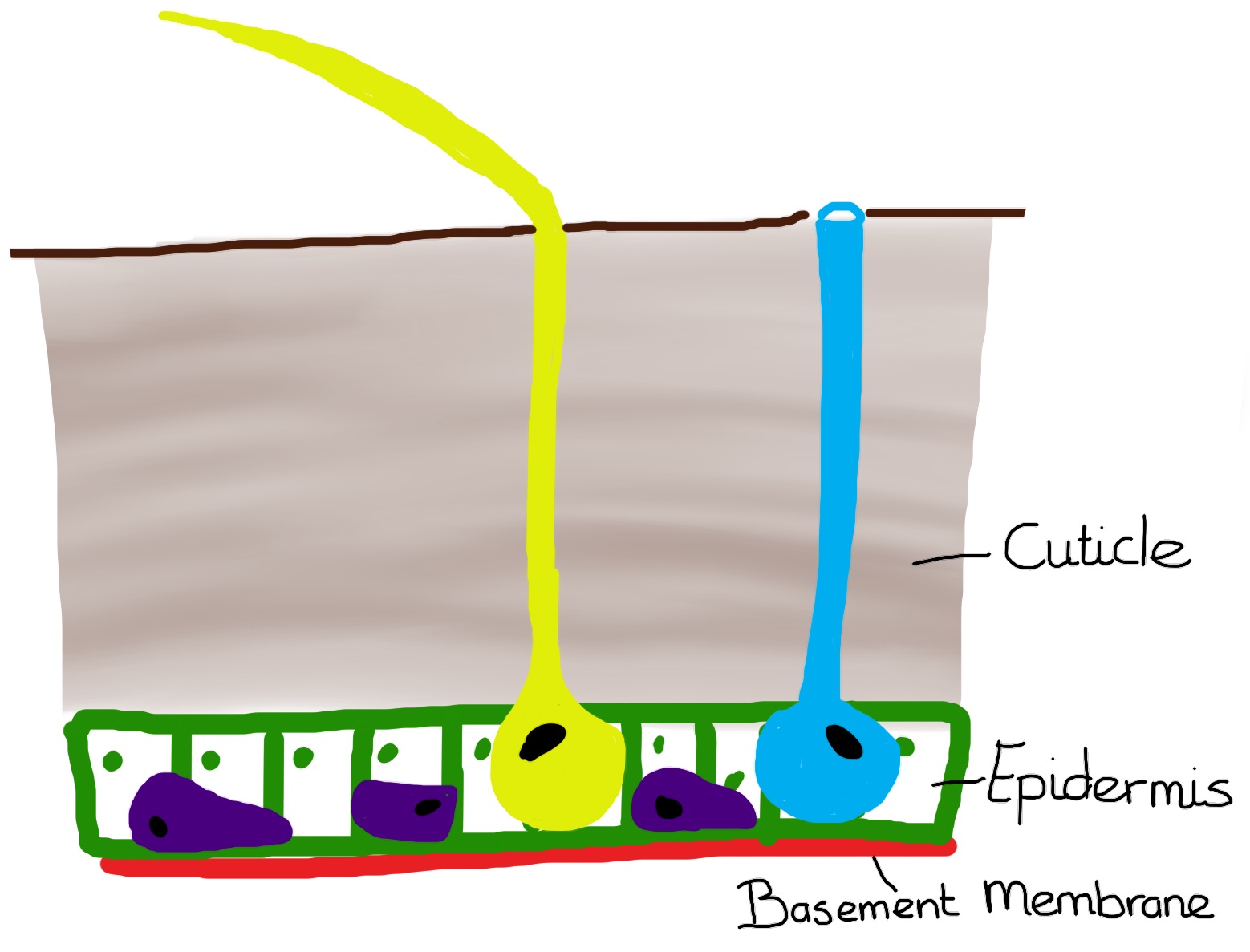

The insect integument. Let's call this meso-level hierarchy. The integument is comprised of an epidermal cell layer and cuticle.

The insect integument. Let’s call this meso-level hierarchy. The integument is comprised of an epidermal cell layer and cuticle, all on top of basement membrane. (Drawing by Marianne Alleyne)

The basement membrane is only 0.5 μm thick and separates the epidermal cells from the circulating hemolymph (=insect blood).  The membrane can some proteins through, and nerves and trachea also penetrate it, but when this membrane gets breached alarm bells go off in the insect’s body. Often an immune response is mounted by blood cells in response to the breach and the epidermal cells will help prepare it.

The epidermis is comprised of living cells arranged in a single layer. The cells can be modified into structures such as dermal glands and sensory receptors.

The cuticle is secreted by the epidermal cells and can be incredibly thin (e.g. larval endoparasitoids) or incredibly thick (e.g. adult rhinoceros beetles). The cuticle is non-living. It lines the external surface of the body as well as the lining of the trachea and the anterior and posterior sections of the alimentary canal and even parts of the reproductive system. This means that often even these structures undergo a re-lining during a molt.

Meso/Micro-level hierarchy

Several horizontal divisions of the cuticle are obvious, when using an electron microscope, giving the cuticle at this micro/meso-level also a hierarchical structure. These divisions came about because the sublayers were produced in a certain sequence.

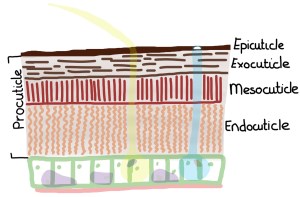

The insect integument. Let's call this meso-level hierarchy. The integument is comprised of an epidermal cell layer and cuticle, all on top of basement membrane. (Drawing by Marianne Alleyne)

The meso/micro-level hierarchy of the insect integument. The cuticle is comprised of the epicuticle and procuticle. The procuticle is in turn subdivided into the endo-, meso- and exocuticle. (Drawing by Marianne Alleyne)

  1. There is a thick inner PROCUTICLE. This is the only layer that contains chitin, it also contains proteins.  As the molting cycle progresses the procuticle becomes horizontally subdivided.
    a)    Exocuticle – Is the first portion of procuticle to become synthesized, and then is pushed outward and becomes the outer layer of the procuticle.  Contains heavily cross-linked (insoluble) proteins and chitin.  This layer cannot be reused and is shed during the molt.
    b)    Endocuticle – This layer is formed just above the epidermis.  Consists of several lamellar layers of protein and chitin.  In soft-bodied insects and in areas of flexibility it is this layer that comprises most of the cuticle.  It is flexible because there is little cross-linking of proteins.  It can also be reabsorbed.
    c)    Mesocuticle – This layer cannot always be identified.  It appears to be a transitional layer.  Proteins are yet untanned (like endocuticle) but impregnated with lipids and proteins (like exocuticle), may also contain chitin.
  2. Thin outer EPICUTICLE consists of several layers, which are produced by the epidermal cells and dermal glands.  This layer does not contain chitin.  Since it is only 1 to 4 um thick it has been incredibly difficult to study. It is lipids in the wax layer on top of the epicuticle that play protective and communicative roles in the life of insects.

Nano/Micro-level hierarchy

The cuticle is a composite consisting of chitin fibers within proteinaceous matrix, all arranged in a layered structure. Several horizontal divisions can be observed. Each layer (or lamina) consists of a layer of parallel chitin chains but the laminae are stacked in such a way that the chitin molecules are arranged in an antiparallel manner.

So what does this mean? Lets see if we can build a cuticle graphically from the nano- to micro-scale.

  • Chitin is one of the two major components of the procuticle, it can make up almost half of the total dry weight of the cuticle – but it probably most likely to be less than 20% for some of the most familiar insects, such as caterpillars. Chitin is a very stable molecule: insoluble in water, dilute acids, concentrated alkali, alcohol, and organic solvents. These features make the molecule a great biological building block, but very difficult to study. Proteins are the other major component of the insect cuticle. It is the interaction between proteins and chitin that provides the mechanical function of the cuticle – giving it strength. (In the future I will come back to interesting proteins, such as resilin.)
  • Chitin is very similar to cellulose. It is an acetylated polysaccharide. A ribbon-like chitin chain is created when N-acetyl-D-glucosamines and glucosamines link together.

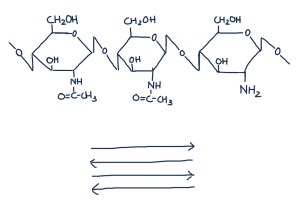

A portion of a chitin chain. In most insect cuticles these chains are arranged in an anti-parallel manner.

A portion of a chitin chain. In most insect cuticles these chains are arranged in an anti-parallel manner.

  • Adjacent chains of chitin are linked together through hydrogen bonds. Most commonly the orientation of the chitin chains relative to each other is anti-parallel. This arrangement (already at this nano-level hierarchical scale) allows for tighter packaging and contributes to the strength and stability of the cuticle. The grouping of 18-25 chitin molecule chains then creates chitin microfibrils that are about 3nm thick. These microfibrils are wrapped in protein.

Nanofibrils are created when groups of chitin molecules link by way of hydrogen bonds and are wrapped in protein.

  • At the next hierarchical level the nanofibrils cluster together into long chitin-protein fibers.
Nanofibrils clustered together to form chitin-protein fibers.

Nanofibrils cluster together to form chitin-protein fibers.

  • The microfibrils are laid down in an almost parallel pattern within a single layer. This creates a network or matrix of chitin and proteins, and other components such as minerals. The chitin microfibrils are covalently linked to the proteins.

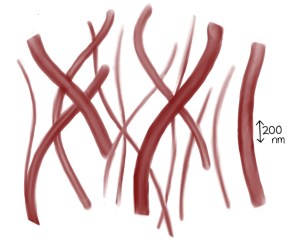

Chitin-protein fibers are woven into a matrix.

Chitin-protein fibers are woven into a matrix.

  • These layers are stacked on top each other in successive layers that are rotated by a constant angle to produce a helicoidal arrangement that further contributes to the strength of the overall cuticle.
The helicoidal stacking of chitin-protein layers (matrix) creates a twisted arrangement. This creates a arching pattern in the cuticle as a whole. (Pictures by Marianne Alleyne)

The helicoidal stacking of chitin-protein layers (matrix) creates a twisted arrangement. This creates an arching pattern in the cuticle as a whole. (Here layers were created by stacking sushi mats in a twisted manner. Pictures by Marianne Alleyne)

It is the hierarchical structure created at the nano-scale, when chitin molecules link together and form chains in close association with proteins, all the way up to the meso-scale, where different cuticular layers are stacked in non-random orientations, that makes the insect cuticle such an inspiring biological material. It is because of this hierarchical structure that the insect cuticle can take on all the different functions that it has. And ultimately the cuticle is one of the main reasons why insects can be found to be thriving in so many different habitats – air, water, land, even inside horse guts. Modern analysis of small-scale composites and self-assembly-type manufacturing techniques will enable us to make materials equally as versatile as the insect cuticle.

Further reading:

Design and mechanical properties of insect cuticle. J. F. V. Vincent and U. G. K. Wegst (2004) Arthropod Structure and Development V33 pp-187-199. DOI: 10.1016/j.asd.2004.05.006


Side note about those sushi mats:

The insect cuticle: (1) multi-functionality

This post is part of a series on the insect cuticle as a biological material that can inspire novel engineered materials. The characteristics of the cuticle, setting it apart from most synthetic/engineered materials, will be discussed in this series. The introduction to the series can be found here.

Cellular and acellular layers make up the insect cuticle. With the most interior layer being comprised of living epidermal cells that secret the outside layers, which then completely cover the insect – even some of the interior surfaces such as the trachea, foregut and hindgut – are lined with cuticle. (The hierarchical characteristics of these layers will be discussed in the next post.). One of the characteristics that makes the insect cuticle, an “inspirational” biological material is its multi-functionality – something that is rarely seen in engineered materials.

Living materials, including the insect cuticle, often exhibit novel properties that are difficult to incorporate (all at once) into engineered materials. Unique physical and chemical interactions of the biomolecules that make up the cuticle (building blocks) at the nanometer scale convey characteristics such as high strength, energy absorption, and flexibility. Currently multi-functionality in engineered materials is limited to different functions due to a hybrid of several distinct phases the material can attain.

Below I have sketched out some of the functions of the insect cuticle. (If I forgot some important functions please leave a comment below and I will add them to the diagram)

insect cuticle functions

Insect Cuticle Functions – probably not complete – click on diagram to enlarge.

Insect Cuticle Functions

Protective Barrier

The insect’s exoskeleton/cuticle/integument is doing the functions of both our skin and our bones. The cuticle completely covers the insect (~armored skin), while at the same time serving as a supportive skeleton (~bones).

The protective covering creates a barrier. Precious water and ions are prevented from freely moving outward, while pathogens, parasites and dangerous chemicals are prevented from moving inward. This function is not at all trivial for insects. Since insects are relatively small they present a large surface area to the outside environment so that loss of water is a greater problem than it is for larger animals such as mammals.

Structure and Form

The insect’s exoskeleton gives the insect structure and form. And over an individual’s lifetime that form can change. In the case of holometabolous insects, such as flies, wasps, bees, beetles, butterflies and moths, this form change is striking. As an immature caterpillar a moth has a cuticle that stretches and is relatively soft, as a pupa the same individual (using the same building blocks, or biomolecules) has a cuticle that is extremely tough and does not change shape easily. Then as an adult moth the cuticle, including the wings, has yet other features that make the insect successful.

The change in structure and form seen in holometabolous insects, and to some extend the growth strategies employed by ametabolous and hemimetabolous insects, enables the animal to exploit different habitats and diets – even during its lifetime.

This is one of the most striking things about the cuticle. During the separate life stages the cuticle has different functions, it therefore has distinct characteristics and appearance. Yet, the biomolecules that make up the cuticle are pretty much the same, and one individual can synthesize all these seemingly very different types of cuticle.

How different is the cuticle from life stage to life stage? I asked family, friends and colleagues to describe, in non-scientific terms, what the cuticle of each form of the hornworm (=moth) feels like. Here are their responses.

Caterpillar or Larva


Caterpillar (Drawing by Marianne Alleyne)

Soft, rubbery, squishy, velvety, muscular, cold. Feels like pleather, like a writhing rubber pickle, like play dough that I rolled in my hands to make a snake.



Pupa (Drawing by Marianne Alleyne)

Hard, smooth, leathery, acrylic, slick. Feels weird & dead.


Adult Moth (Drawing by Marianne Alleyne)

Adult Moth (Drawing by Marianne Alleyne)

Fuzzy, hairy, soft. Feels like perfumed talc from my grandmother’s vanity. Holding it will probably feel like a fluttering beakless bird but since I haven’t held a fluttering bird, with or without a beak, I can’t be sure.


The rigidity that the exoskeleton exhibits makes it possible that insects can make rather precise muscle movements since those are due to the insertion of muscles to the integument wall. It is often the cuticle that has important biomechanical features that enables an insect to run, jump, dig, fly or swim. These precise movements are also essential for respiration (creating flow of air in and out of the tracheal system), food manipulation, excretion and osmoregulation.

Sensing the Environment

Maybe surprisingly a rigid integument is not necessarily limiting awareness of the surroundings. The cuticle has been modified in many insects into structures that can sense most of the modalities that we can sense with our skin. Some examples are the trichoid sensilla, the campaniform sensilla and chordotonal organs. Note that all three of these sensors use the cuticle as an integral part of their structure.

The functionality of the trichoid sensilla - a mechanosensory hair - is dependent on the rigidity of the cuticle.

The functionality of the trichoid sensilla – mechanosensory hairs – is dependent on the rigidity of the cuticle. (Drawing by Marianne Alleyne)

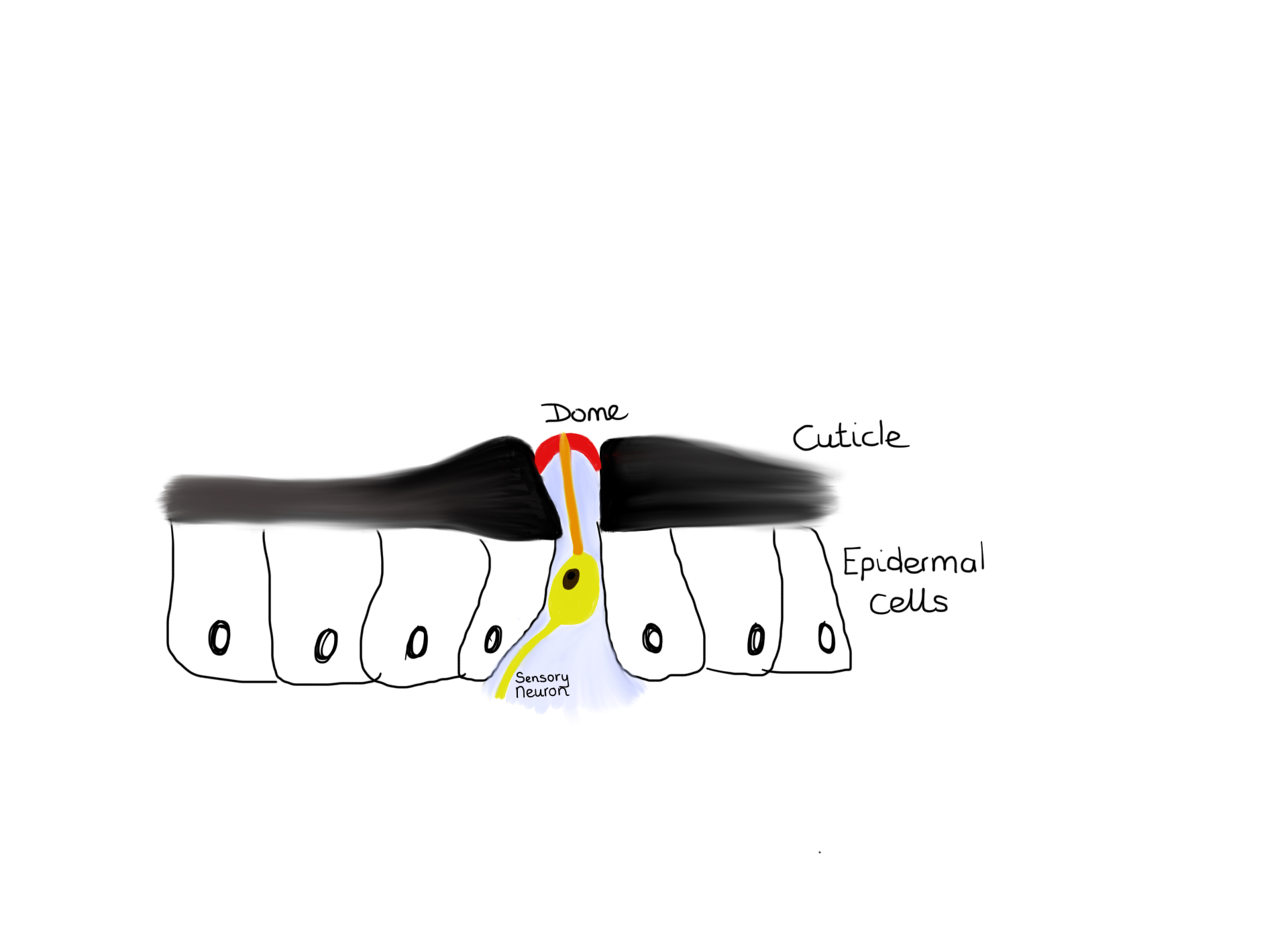

The campaniform sensilla is a mechanoreceptor found in insects. When the exoskeleton bends the resulting strain stimulates the sensilla.

The campaniform sensilla are mechanoreceptors found in insects. When the exoskeleton bends the resulting strain stimulates the sensillum. (Drawing by Marianne Alleyne)

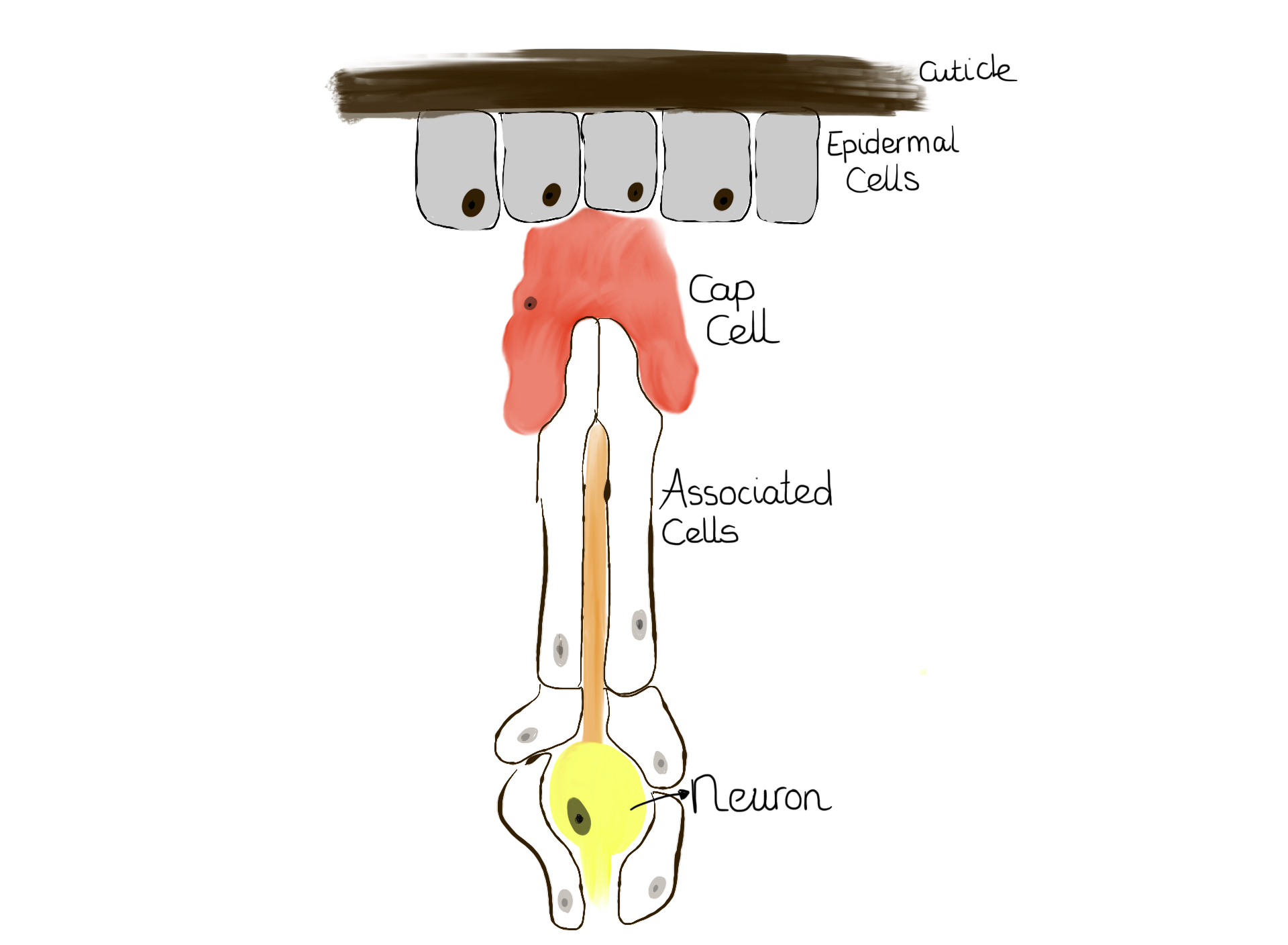

The chordotonal organ is a stretch receptor that senses to what degree the cuticle is being deformed. This deformation can then give information about movement of body parts, gravity (proprioception) and vibrations of the surrounding air (hearing).

The chordotonal organ is a stretch receptor that senses to what degree the cuticle is being deformed. This deformation can then give information about movement of body parts, gravity (proprioception) and vibrations of the surrounding air (hearing).

Energy Storage

For many insects the cuticle also represents a temporary food store. The basic building blocks, to some extend, can be withdrawn during times of nutritive stress. Having to molt to be able to grow in size is one of the drawbacks of having an exoskeleton. Molting consumes time, energy and metabolic resources, and makes the insect vulnerable against pathogens, predators and water loss.  Reabsorbing much of the cuticle during molting minimizes some of these costs. (The closed-loop cycle characteristics of the cuticle will be discussed in part 8 of this series.)

Behavior Modulation

The single layer of epidermal cells that secretes the cuticle also secretes and deposits within or on the cuticle hydrocarbons that are involved in behavioral sequences that are important in recognition and mating. Pheromones and pigments are also deposited. The cuticle may also have modified structures that are important in mating or other behavioral processes – such as bumps,  hairs, nano-scale structures that create structural colors.

By further studying the insect cuticle it is my hope that new materials can be created, using similar “manufacturing” steps as employed by insects, that can provide increased function through integrated or further-integrated systems. Insects do it, we should too.

Next: the structural hierarchy of the insect cuticle.

(My apologies to dumpy grey-brown moths everywhere. That is a terrible drawing of an adult moth. Oh, well)

#EntSoc13 – One for the record books.

This post is not about Bioinspiration. Instead it is about the “service” part of my job. Read the post if you are interested in the Entomological Society of America, otherwise please stay tuned. Another bioinspiration-related post will be posted soon. There is a plea for symposia-ideas for the International Congress of Entomology in 2016 related to Insect Bioinspiration and Insect Biomechanics at end of this post.

I really love my primary professional society. I have been a member of the Entomological Society of America for almost 20 years now, and I have seen it go through changes – most of these changes resulting in a more inclusive and vibrant Society. Ever since my student-days I have tried to be involved within the leadership of the society; as Section leader of my section (first called Section B-> then the poorly named IPMIS-> and now PBT, Physiology, Biochemistry and Toxicology) and currently as a member of the Program Committee for the Annual Meetings.

How does one get to organize the arguably premier entomological conference? Hum, well, what happened was that my PhD advisor, Robert N. Wiedenmann, was elected president of the Society a few years back. I greatly admire Rob, he is one of my favorite people, so I may have, inadvertently, told him that I would do anything to help him make his term successful. Guess who called me back a few weeks later to ask me to serve as one of “his” Program Committee Co-Chairs for the Annual Meetings in Austin in 2013? Of course I said yes, also because the other co-chair Luis Cañas (the Ohio State University) has been a long-time friend. We were going to give the Society an international flair – with Central-American-Western-European-Midwestern sensibilities.

What does it mean to be on the Program Committee? Well, it is basically a 3-year commitment.

The first year you sit in on bi-weekly conference calls and you listen to the current Program co-chairs organize “their” meeting. You take LOTS of notes, and you try to ignore the increasing panic becoming obvious in their voices. During that first year you are also in charge of organizing the Student Competition, which means that at the summer meeting (held at the site for the Annual Meeting) you start badgering the Section Leadership (president and vice president) for names of moderators and judges, and try to figure out where the heck you are going to put all the sessions. No matter how organized you are, how supportive the ESA staff, the week before the Annual Meeting you are going to have missing judges – so this is where you start calling in favors and shaming people to “volunteer”. (This issue is worth a whole different post, and upon reflection this was my least favorite part of my term on the Program Committee). By the way this is where you sign up to volunteer for ESA.

The second year you get to put the program together.

  • Early on in the year you ask for Program symposium ideas. We had about 20-plus ideas to choose from, but we picked 6. The official theme for the meeting was “Entomology in a connected world” and so the topics for the Program symposia had to fit that theme. Our own motto was “inclusiveness and diversity”, we picked symposia that individually, and also as a group, reflected the motto. Diversity in topics, inclusiveness of sections, diversity of organizers and speakers, etc.. Then later in the Spring we picked Section and Member symposia, pretty much using the same criteria. We tried to have the conference as a whole reflect diversity and inclusiveness, it became more of a driving force, which meant that we were forced to turn some of the poorly developed proposals away. But that was a good problem to have.
  • The month before the summer meeting in July we had all the symposia picked and we knew how many posters and ten-minute papers (outside of the symposia) to expect. We started to divide up the symposia and assigned them to dates. we tried, as best we could, to incorporate peoples requests (for tech needs, for instance). We tried to have little overlap in topics. This can be difficult. For instance, the two most popular symposia topics across Sections were pollination and microbiomes. Both topics are relevant to multiple sections, meaning that members from one section do not want to miss symposia in another. Tricky stuff.
To organize all the symposia I went back to basics and used sticky notes. Top left shows me dividing up the P-IE, and bottom right shows my son entering info into ConFex.

To organize all the symposia I went back to basics and used sticky notes. Top left shows me dividing up the P-IE, and bottom right shows my son entering info into ConFex.

  • At the summer meeting we proposed our choices to the Section leadership. Mostly they were happy with the assignments and luckily pointed out a few conflicts which were then fixed. The most difficult part of the summer meeting can be the division of the available meeting rooms. It is Section Leadership who have to decide together in what part of the conference center a particular Section will hold most of its presentations. As you are probably well aware there are prime-areas in conference centers, and then there are not such great rooms. Luckily the Section Leadership worked together very well and and decided on a workable division quickly. Section leadership spent the remainder of the 2 days spell-checking submissions, finding moderators, and contacting potential judges and moderators for the student competitions.
The Program Committee hard at work during the Summer Meeting. Top left - assigning symposia to rooms. Top right - ESA staff entering choices into ConFex. Bottom - sifting through all the submissions looking for duplicate entries, spelling mistakes, etc.

The Program Committee hard at work during the Summer Meeting. Top left – assigning symposia to rooms. Top right – ESA staff entering choices into ConFex. Bottom – sifting through all the submissions looking for duplicate entries, spelling mistakes, etc.

Left: Program Committee of #EntSoc13 at Summer Meeting in Austin. Right: The people who make the meeting go smoothly Tori D. (ConFex), Cindy M. (ESA) & Rosina R. (ESA).

Left: Program Committee of #EntSoc13 at Summer Meeting in Austin. Right: The people who make the meeting go smoothly Tori D. (ConFex), Cindy M. (ESA) & Rosina R. (ESA).

  • The rest of the summer is a blur. This is when you have to field the complaints for assignments from members (1% of the membership takes up 90% of your time), and resolve timing/room conflicts. You have to double check that all the functions are accounted for. This is also when we distributed the Program Enhancement Funds, a difficult task because the need is great but there is never enough money. …..And….most of my twitter followers know what is coming….during the summer had to deal with the Common Names Index. Lets just say, people like to make sh*t up. Also, people have a difficult time spelling “Coleoptera”, even people who work on “Coleoptera” (See archived tweets in this section, and at the end of this post). I can proudly say that I saved a lot of trees because I spent most of my summer, while traveling by rail through Europe, to reduce an unedited 20+ page index to just over 3 pages. Surprisingly, I would rather create the many time tables in the front of the program book than do that task again. I will spend a lot of time over the next few months working with ConFex and the current Program co-chairs to make this onerous task more pleasant.
  • After much proof-reading (Honestly? not really, because at this point any spelling mistakes were in my opinion the responsibility of the submitter – I am looking at YOU, submitter) – the Program was finally done early on in the Fall and ready to be printed. This has to happen so early because type-setting, printing and shipping actually takes a long time. And then after all is finished, then the cancellations start pouring in. Of course. So here is a lesson for when attending an Annual Meeting, start relying on the mobile app more, that is where the changes are reflected in a more modern age fashion.
  • And then for 2 months or so you just wait, and wait, and wait, and you live with this feeling that you have forgotten to do something very important. But ESA staff is so incredibly competent, they seemed to have everything under control. So you wait for the shoe to drop.

And then, the meeting just starts, happens, and ends. And all the while you just bask in the glow, because the ESA staff has everything under control.


The awesome ESA staff. They make the meeting run smoothly.

The third year you that you serve on the Program committee you still attend the conference calls, the summer meeting, and you are in charge of the Poster sessions. But your primary purpose is to serve as a wise sage to the new Program Committee Chairs and Student Competition Chairs. A lot less work is involved, and you get to go more sessions, talks and posters at the Annual Meeting. Or at least that is what I think you do, guess I will find out next year.

As you might have heard by now the meetings were a big success. We had a record registration of almost 3500 entomologists, we had a record number of symposia and talks. Some of the things I am most proud of that we accomplished:

  • From the beginning of putting the Program together we had diversity and inclusiveness in mind. When soliticiting symposia ideas we included in the announcement that organizers should keep the same criteria in mind. Many symposia organizers (close to 50%) were female. I cannot think of one symposium that only had male speakers, which was a common occurrence when I was a graduate student.
  • President Wiedenmann included this mindset in his communications to the society. His “Ethics” essay for “Articulated Segments” was promted by another society’s study on inclusivness on women. I was only one of the people that pointed this issue out to him and asked him to address it from an ESA standpoint – it felt good to realize that those in power actually listen and appreciate input on challenging issues.

It is important that we “do the right thing,” looking out for each other and ourselves and, importantly, holding each other and ourselves accountable. As a professional society, we need to have clear policies, and we must be willing to act when ethical transgressions are found. Not necessarily to act swiftly, but to act fairly and boldly. –  R.N. Wiedenmann, President of the Entomological Society of America

  • Just prior to the Annual Meetings the other work-related community I care much about, the science communication community, just kinda seemed to implode. Much of the issues raised did not speak to me directly, but I did think that as organizers of a big meeting we could not ignore it. ESA was aware of the issues and agreed to take action promptly. Quickly they put up a no-harrassment policy onto the main page of the Annual Meeting website*, and the ethics and Governing Board considered a strongly stated ethics statement about harassment. This is no longer your good ol’ Entomological Society of America. Bravo!

Harassment of ESA participants of Entomology 2013 will not be tolerated in any form. Harassment includes offensive verbal comments related to ethnicity, religion, disability, physical appearance, gender, or sexual orientation in public spaces, deliberate intimidation, stalking, following, harassing photography or recording, sustained disruption of talks or other events, inappropriate physical contact, and unwelcome attention. Participants asked to stop any harassing behavior are expected to comply immediately. Retrieved from the website.

Things I hope to help improve:

  • Incorporate non-standard symposia into the program. For instance, shorter traditional sessions, which then move into ten-minute papers and posters. Our new Society President – Frank Zalom has charged the new Program Committee to make this happen.
  • Child care at the meeting is important to many of our members. The Society has tried formal childcare, but it was far too expensive for the number of people using it. I think the society can be of assistance with informal childcare options that includes a virtual discussion board where people can set-up a childcare cooperative arrangement, as well as a parenting room where children can play and sleep.
  • I plan to encourage more people from under-represented groups to participate in serving the society at different levels. It can be very rewarding. My favorite part is that I get to spend more time with old friends but also make new ones, often people who are in completely different research areas as myself. It is key to find financial support for people in non-traditional academic or professional jobs to take on a committment to serve the society. In my case I do not have grant that can help me pay for registration, hotel and travel, and my Department has not given me financial support either (Granted, I have never asked). I can imagine that the very people that we want to attract to take increase diversity in leadership positions might have a difficult time to make such a financial commitment.

Serving on the Program Committee is a big commitment. It requires time away from your academic job, from family, and it costs money since you are committed to pay registration and travel and hotel to all three Annual Meetings. No, “I think I’ll skip this year and send my grad student”. (NB: travel to summer meetings and hotel are paid for by ESA)

I am glad that I was able to serve the Society as Program committee co-chair. I learned a lot, especially about the Society itself. The Entomological Society of America has many members, all from different backgrounds and with different reasons for why they are members and why they attend Annual Meetings. I myself often feel different from my entomology colleagues because of my non-traditional job description and my research & teaching interests, but being this involved in the ESA’s functioning always makes me realize that none of us really fits in a neat box – thank goodness! After almost 125 years the Society is strong and yet not content with the status quo. And because I am a glutton for punishment, I am also involved in the Program Committee for the 2016 International Congress of Entomology to be held in Orlando. (Please consider submitting symposia topics on Insect Bioinspiration and Insect Biomechanics – contact me!).

And then there were these reasons:

  1. Ten pounds of candy.
  2. Good friends.

As promised:

Below are my archived tweets from the Common Names & Program Book Index saga. I love how you can just see that I get pissier and pissier over the course of a few months.

The termite mound: A not-quite-true popular bioinspiration story

The termite mound: A not-quite-true popular bioinspiration story

I traveled extensively over the summer; to Austin, TX, all through Western Europe and back to Illinois. All the while I was working on this blog post about bioinspired air-conditioning, which was appropriate because everywhere I went I seemed to have to suffer through heat-wave after heat-wave.

While wishing for Europe to have more air-conditioning units (especially in class-rooms and lecture halls), one of course wonders if that would only exacerbate the problem and make summers even hotter. Progress is constantly being made on making air-condition units more compact, more energy efficient, and thus more environmentally friendly. Inspiration on how to accomplish this has been already been found in natural systems.

Recently Brian Clark Howard wrote an interesting and popular article for National Geographic entitled: “5 Natural Air-Conditioning Designs Inspired by Nature”. Arthropods (termites & ticks) were prominently represented on this list. However, I would like to provide a little bit more detail and corrections to the NG’s list.

The insect examples touched upon in the NG article is that of the termite mound. The most famous architectural example of biomimicry or bioinspiration is the Eastgate Centre Building in Harare, Zimbabwe, which opened in 1996. Architect Mick Pearce and the firm Arup were supposedly partly inspired to build a building suitable for a tropical climate by considering the locally present termite mounds, and build their vision using locally available materials.

Eastgate Centre (with chimneys on roof) in Harare Zimbabwe. (Source: Unknown potographer)

Eastgate Centre (with chimneys on roof) in Harare Zimbabwe. (Source: Unknown photographer)

Anyone who is even the slightest bit interested in biomimicry knows of the Eastgate Centre, but since the political and economic situation in Zimbabwe has probably only deteriorated since 1996 I was wondering if it was actually still standing and still used as the commercial center it had been envisioned as.  So I took my questions to Twitter: [View the story “EastGate Building Harare, Zimbabwe” on Storify]. Turns out that the Eastgate building is still used and stands out prominently in the heart of Harare (and as @ardeans pointed out the building is located right on Robert Mugabe Road, sigh). One of the occupants is actually the United States Embassy.

It is just kind of too bad that the building is based on incorrect biology. Or is it?

First a little bit of background about the inspirational insect. Macrotermes termites (Macrotermitinae) occur over tropical Africa and Asia. There are about 330 species in this genus of relatively large termites. Most of the species build elaborate mounds. The tallest mounds occur in Africa (max of 30 feet, 9 meters). Macrotermes termites cultivate fungi, and spend most of their time, somewhere deep within the mound. The Macrotermes species that has been studied the most is the African species M. michaelseni.

Termite Mound

Flickr user Potjie uploaded this picture of a termite mound in Northern Namibia. (

Popular wisdom says that in order to optimize fungus growth the interior of the mound needs to be maintained within the narrow range of 29-32°C. To keep keep within this narrow temperature range, despite of fluctuating temperatures during the day- and night time, the large mounds are not just heaps of dirt but in fact incorporate elaborate ventilation holes and air ducts and air pockets, which drive natural ventilation through convection. And remember, these structures are build by a million tiny insects that behave in an organized manner to come up with an architectural masterpiece, every time.

So no wonder that Mick Pearce, born and raised in Southern Africa, was inspired by the the termite mound to design a building in tropical Harare that would have similar features.

Up until recently two models for the termite mound function were proposed and commonly accepted. In case of mounds that were capped a “thermosiphon flow” was created – basically hot air created by the nest rises to the top of the mound where it gets refreshed and is supplied with water vapor through the porous mound walls. This denser air then is forced down below the nest, where the cycle is repeated.

2013-09-04 08.40.10

Thermosiphon flow model in which ventilation is driven by heat. (Drawing by Marianne Alleyne, based on Turner & Soar, 2008)

The second model applies to mounds that have a chimney at the top of the mound that opens to the outside. This arrangement creates induced flow, also called the stack effect. The chimney breaks the surface boundary layer and is exposed to higher wind speeds compared to inlets on the ground. The unidirectional flow draws fresh air from near the ground into the nest, where it passes on through the chimney and ultimately to the outside.

2013-09-04 08.40.20

Induced flow model in which ventilation is driven by wind. (Drawing by Marianne Alleyne, based on Turner & Soar, 2008)

The architects who designed the Eastgate Centre building tried to incorporate both the thermosiphon and induced flow principle into their design. The building has an extensive tube system within the walls and floors that move air trough the building. Heat generated within the building, along with stored heat within the structure, creates a thermosiphon-effect that draws air up and through the rooftops where large chimney stacks are located. These tall stacks are essential for creating an induced flow.

Detail of tube system within Eastgate Centre building.

Detail of tube system within Eastgate Centre building’s walls and floors (Original picture at

When popular stories about the Eastgate Centre building say that the building works on the termite mound principle they ignore the fact that the building uses low capacity fans during the day, and high capacity fans during the night to keep the air from being too stagnant, effectively replacing the hot air that builds up during the day with cool air during the night. This works well, and avoids having to use expensive air-conditioning technology, but needless to say, no termite mound utilizes fans.


The use of fans within the Eastgate Centre. Smaller fans run during the day-time hours (left). They keep the environment within the building comfortable while the walls store the heat from the outside. Larger fans run during the night-time (right), these fans pull the stored heat out of the walls and push the heat out through the ducting in the ceiling and walls. By the next morning the walls are ready to again store heat (Drawing by Marianne Alleyne).

Since 1996 the common assumptions about how termite mounds are ventilated has been refuted by researchers J. Scott Turner and Rupert C. Soar. And they do it (the disproving) in such a polite manner! (see Conference paper, Flash presentation, YouTube video).

Turner and Soar actually measured temperatures in and outside of the mound. It turns out that while termites may be able to dampen temperatures during the day the nest itself actually closely tracks the soil temperature, which ranges from 15 degrees C in the winter and 31 degrees C in the summer. Mounds have clearly a large thermal capacity, but their architecture, their infrastructure, and their ventilation have little to do with the internal temperature at any given time.

Nest temparature (blue) and ground temperature at 1m depth near nest (red)

Nest temparature (blue) and ground temperature at 1m depth near nest (red) Drawing by M. Alleyne based on Tune r& Soar, 2008))

In addition, whereas induced flow might work well in tall buildings because the likelihood of a boundary layer gradient between locations is pretty high, it has been shown that induced flow rarely operates in termite mounds, even open-chimney mounds, since they are commonly only about 6 ft tall. There is also no evidence that mound ventilation and nest ventilation are indeed linked. How respiratory gases are moved from the nest to the mound, and fresh air from the outside, through the mound, to the nest, is not well understood.

Now the Eastgate Centre, and other large buildings since then, accomplished what they set out to do – they saved in construction costs (HVAC systems are very, very expensive) and they save on operating costs, all while keeping the inhabitants comfortable. It probably does not matter that they were based on incorrect science, but it does matter that the misconception gets repeated over and over again. If biomimicry and/or bioinspiration want to be considered legitimate fields of study, and not just a feel-good endeavor, then the science that the field is based on has to be solid.

The termite mound should still inspire developers and architects because at it turns out, if we view the termite mound as the analogue of our own, respiratory system (lungs) then we still should be able to design “breathing” buildings that have that walls serve more as membranes rather than barriers.

Turner and Soar not only took relatively simple measurements of the temperatures, they also made plaster casts of the tunnel network of M. michaelseni mounds. They then created horizontal slices of the plaster filled mounds for easier recreation of future 3D models.

Based on these models, which showed actually very little continuous mixing between the air coming down from the above-ground structure and the air from the underground nest, they propose that the termite mound of M. michaelseni is in fact a functional analogue of a lung. And much like the lung the termite mound is far more complex than the simple models we have been using (for an excellent explanation comparing functional organization of both lungs and termite mounds please refer to Turner and Soar, 2008).

Comparison of the functional organization of mammalian lungs and the termite mound. There are areas of forced convection (large tidal flows) in red, areas where smaller tidal flows dominate creating mixing diffusion-convection, and then the areas where diffusion dominates.

Comparison of the functional organization of mammalian lungs and the termite mound. There are areas of forced convection (large tidal flows) (in red), areas where smaller tidal flows dominate creating a mix of diffusion-convection (in blue), and then the areas where diffusion dominates (in green). (Drawing by Marianne Alleyne, based on Turner & Soar, 2008)

This complexity opens up new avenues for bioinspired design based on the termite mound. Termites erect walls that are actually interface directly with the outside and indoor environments – the walls themselves let gases and energy through, it does not form an impenetrable barrier. Buildings that are designed based on correct termite mound architecture should incorporate porous walls and cladding (~skin) systems that incorporate tubes/tunnels through which air and energy can flow. Maybe we can design living buildings that are part of our extended physiology, as much as the termite mound is part of the living-system called the termite colony.


I cannot recommend the Turner and Soar paper from 2008 enough. It is a wonderful read. The authors touch on more topics than I mention here (homeostasis, for instance). And again, their debunking of previously held beliefs is done in a way that should be emulated.

  • J. Scott Turner and Rupert C. Soar. 2008. Beyond biomimicry. What termites can tell us about realizing the living building.
  • The same authors also wrote a book chapter on a similar topic. But I have not yet been able to locate: Beyond biomimicry. What termites can tell us about realizing the living building. Chapter 15 in: Industrialised, Integrated, Intelligent Sustainable Construction. ISBN 978-0-86022-698-7. Ian Wallis, Lesya Bilan, Mike Smith & Abdul Samad Kazi (eds). I3CON/BSRIA. London. pp 233-248.

J. Scott Turner has also converted this work into very informative video lectures, such as:

  • Learning from nature: Termite mound lungs and the implications for breathing mines.

For great footage of how the termite mound models were created check out these videos.

I am not, by a long shot, the first to point out how the termite mound is NOT (yet) the perfect poster-child for bioinspiration and biomimicry. Here are two other blog-posts that discuss this very topic:

Additional pictures of the Eastgate Centre building in Harare Zimbabwe, click here.

Note: I would like to thank Adrian Smith who a few years ago made me aware of the work by Turner and Soar.

Insect Bits & Bytes (June 2013)

This month’s topics:

Silkworm pavilion

Another compound eye

Some of the stories behind insect-inspired robots

Anti-counterfeit money thanks to butterflies

How to defeat hackers

Miscellaneous – things I learned about social media while writing the blog-post.

Silkworm pavilion

I ended last month’s “Bits and Bytes” with a mention of a project that was making the rounds under the heading #biomimicry. I am still not sure if this really falls under biomimicry or bioinspiration, but during the month of June it kept popping up on Twitter, probably because it is just very, very cool. The project received extra attention because the project was on display in Boston, the city where the Biomimicry3.8 Education Summit and Global Conference was held during the month of June – so cross-pollination for all!

The Mediated Matter group, under the guidance of Professor Neri Oxman, studies additive fabrication techniques (such as 3D printing) and tries to scale some of them up to, for instance, building-size structures. One of the projects involves mobile swarm building where small robots could potentially build large structures. For this project, which is ongoing, they are currently studying how silkworms (the caterpillars of the moth Bombyx mori) can inform this type of building technique.

SILK PAVILION from Mediated Matter Group on Vimeo.


Silk Pavilion information can be found on the Mediated Matter website here (tools: swarm printing), and here (environments: silk pavilion), and here (news: silk pavilion).


Another compound eye

Last month’s Bits and Bytes started off with the perfect insect-inspired story: an engineered compound eye from a University of Illinois lab. Great story to lead off the inaugural issue of a recurring blog feature – considering I cover insects, engineering and work at UIUC. Turns out that some of my ommatidia neglected to notice another story very similar to the one I covered. Last month the Laboratory of Intelligent Systems at EPF-Lausanne also created a miniature curved artificial compound eye.

Size comparison between CURVACE (Curved Artificial Compound Eye) and a dragonfly. Image: courtesy Dario Floreano / Swiss Federal Institute of Technology

Size comparison between CURVACE (Curved Artificial Compound Eye) and a dragonfly. Image: courtesy Dario Floreano / Swiss Federal Institute of Technology.

Maybe the manufacturing technique and the material used are not as cutting-edge as those used in the Rogers’ lab, but it seems to me that the final creation is a lot more like an insect compound eye.

The design consists of three planar layers of separately produced arrays, namely, a microlens array, a neuromorphic photodetector array, and a flexible printed circuit board that are stacked, cut, and curved to produce a mechanically flexible imager.

Illustration for the CURVACE assembly_method.

Illustration for the CURVACE assembly method.

Reference: Floreano, D., R. Pericet-Camara, S. Viollet, F. Ruffier, A. Brückner, R. Leitel, W. Buss, M. Menouni, F. Expert, R. Juston, M.K. Dobrzynski, G. L’Eplattenier, F. Recktenwald, H.A. Mallot & N. Franceschini. (2013) Miniature curved artificial compound eyes. PNAS V110 (230, pp 9267-9272. DOI: 10.1073/pnas.1219068110


Some of the stories behind insect-inspired robots

Robotic insects were again quite popular this month, or at least on Twitter they were. As I covered in an earlier post (The Dawn of the Artificial Coprophages) engineers have been interested in building robots that move and behave similar to insects for quite a while. It first started with terrestrial locomotion, but now we also see insect-inspired robots that can swim, walk on water, dig, jump and (The Holy Grail) fly.

Here are a few insect-inspired robots that came across my computer screen this week:


Nature Magazine’s News and Views section (=behind a pay-wall) published a great 2-page article by David Lentink (Dept. of Mechanical Engineering at Stanford University) covering the history of “robotic fly”.

Lentink reviews how the basic research on aerodynamics of insect flight inspired engineers to build robots using the data obtained by the biologists. And how this cross-pollination occurs at the same time as micro-manufacturing techniques are being developed. The article culminates with a recent publication from Rob Wood’s Harvard Microrobotics Laboratory.


This item does not need much introduction beyond this tweet:


Some other popular science articles that came out this month but covered research that was made public earlier this year:

I also found the article by Emily Monosson for Aeon Magazine an interesting read.

Monosson does not mention insect or insect-inspired robots specifically but she does wonder if life/AI can evolve from wires and plastic. Considering all the work that is being done on insect-inspired robots I assume that we will soon find out.

Anti-counterfeit money thanks to butterflies

Another story that received a lot of twitter-buzz this month was the one about Morpho butterflies serving as inspiration for anti-counterfeit money. The fact that Morphos (and many other butterflies and moths) use structural colors has been known for some time. Engineers and Material Scientists have also been interested, for quite a while now, in manufacturing materials that incorporate nanostructures similar to those on the butterfly wing. So that begs the question, why is this big news now? Probably because of a strategically placed corporate press release. It is interesting to see that news can spread quickly via social media (see silkworm pavilion story, for instance) but also that the story never really goes away.

Reference: ??


How to defeat hackers

Another example of how not-really-news becomes (again) a relatively big story is the article by Rafe Sagerin on how biomimicry can help us stay ahead of hackers. This article was basically a synopsis of his 2012 book called “Learning from the Octopus” which was fun book to read – but did not feature near enough insect examples. This article mentions only one insect (the stingless bee, go figure) but sentences like;

“The best bet is to do what the most successful organisms on Earth do — accept the risk and adapt to the changes”

immediately makes me think of insects since they are so very very successful and ubiquitous.

That this particular article became so popular this month showed me that getting your core-message (look to nature to fight terrorists, diseases, hackers) into a magazine where the topic is not typically discussed (Harvard Business Review) will help reach a lot of new sets of eyes and will familiarize more people with the terms biomimicry and bioinspiration.


Lessons I learned from Twitter and this blog-post during the month of June:

  1. There is a lot of cool stuff out there about insect-inspired technology. I need to become better about cataloging all the awesomeness as it becomes available during the month. (Any tips?)
  2. There is so much cool stuff out there that sometimes I miss something, especially if the topics are similar to each other. Last month I assumed the engineered compound eye stories were one story, but it turns out that they are actually two different approaches.
  3. Some stories seem like new but they may actually be receiving a “second wind”, because a journalist/science writer revisits the story or because of a simple retweet. Some stories therefore never really disappear.
  4. Placing a story in a non-traditional media outlet will result in a whole bunch of new eyes seeing the work, and that is a good thing.

And after all these years I am still unsure if certain areas of research really fall under bioinspiration or biomimicry (for example, the silkworm story or biofuels). And that is OK. Not everything will fit neatly in a box, even though the scientist-side of me wishes it would.

Insect Bits & Bytes (May 2013)

Insect Bits & Bytes (May 2013)

This month’s topics:

Compound eye-inspired camera

Robotic Flyer

Water-repellent, self-cleaning cicada wings

Thin film interface inspired by moth eyes

Ants tunneling, falling and catching themselves

Sound perception in moths

Jumping Robots

Some of you might be thinking that the topic of this blog is rather narrow: “How can she possibly sustain this blog because she is going to run out of topics at some point…soon”.

Or is that just the voice in my own head talking?

I only have to remind myself that I have chosen a taxon, the Insecta, which is extremely diverse and that new species are being discovered and described every day, so it is very likely that I am going to be occupied for a while. Insects have adapted to many different environments, often through very novel and varied (compared to mammals) adaptations. Inspiration for innovation is bound to be found in common insects, but also in the obscure. And if I adopt the often ignored non-insect arthropods such as ticks, mites, spiders, etc., then I will be set until retirement. At the same time imaging and manufacturing techniques are making the small visible and producible so advances in engineering are helping me stay off the streets too.

In this inaugural “Insect Bits & Bytes” post I highlight some of the research I came across on Twitter (#biomimicry or #bioinspiration) during the month of May. These studies all involve new technologies that were inspired by insects or basic discoveries about insect biology that could lead to new innovations.

I have compiled a list of links to this work, as well as to coverage of the research by some of my favorite science writers. I hope to do the same at the end of every month.

Compound eye-inspired camera

The biggest insect-inspired technology story came from the University of Illinois at Urbana-Champaign (my home institution). John Roger’s material science lab was inspired by the insect eye to develop a new digital camera.


New digital cameras exploit large arrays of tiny focusing lenses and miniaturized detectors in hemispherical layouts, just like eyes found in arthropods. Photo credit: John A. Rogers, UIUC

These hemispherical cameras depend on the manufacturing technique that has been perfected in the Roger’s lab – manufacturing flexible electronics.

Engineers have tried to manufacture compound eyes before. In 2006 UC Berkeley’s Luke Lee fabricated an artificial compound eye in his lab. He created thousands of closely packed light-guiding channels leading to pin-head-sized polymer resin domes and then topping each dome with its own lens. Each individual unit is very similar to an insect’s ommatidium (the individual unit of the compound eye). The fabrication method itself was based on the developmental stages of the insect, and resulted in a 3D artificial compound eye that is similar in size, shape and structure to the insect’s compound eye.

In my opinion, because of how the “eye” is manufactured and functions, Lee’s artificial eye is closer to its model than this new bioinspired eye from the Roger’s lab. Time will tell if, by adding engineering shortcuts in manufacturing, and by using materials that work better with how we currently use electronics, a more useful camera or sensor is created.

Reference: Song, Xie, Malyarchuk, Xiao, Jung, Choi, Liu, Park, Lu, Kim, Crozier, Huang & Rogers. 2013. Digital cameras with designs inspired by the arthropod eye. Nature


Robotic Flyer

Over the years it has been exciting to see how small engineers can make flying robots. Research by people like Michael Dickinson on insect aerodynamics have helped engineers such as Ron Fearing and Rob Wood to develop microrobots that can fly. This past month we learned that the Wood lab at Harvard’s Wyss Institute has now manufactured a controllable robot, the size of an insect, that can fly. (Note: the manufacturing process for these types of robots is really cool too.)

One of the major remaining challenges, before microrobots will be used on a grand scale, is to get them enough power to walk, run, swim and/or fly for an extended time (note the tether in all the flying minirobot pictures and videos). There is just not enough room on a small robot to incorporate conventional batteries, or even smaller lightweight battery sources like a coins cell or solar panels. Future advances may involve biological motors as power sources. Maybe we can even learn more about basic insect flight energetics (a very interesting topic) and incorporate what we learn about basic insect physiology into microrobots.

Reference: Ma, K. Y., Chirarattananon, P., Fuller, S. B. & Wood, R. J. 2013. Controlled flight of a biologically inspired, insect-scale robot. Science.


Water-repellent, self-cleaning cicada wings

Cicadas all over the news these days. The East Coast of the US is in the midst of the 17-year periodical cicada emergence. This year cicadas are apparently also of great interest to those studying biological materials at the nanoscale. Earlier this year it was reported that nanopillars on clanger cicada wings can tear bacterial membranes apart. One can think of interesting applications for engineered materials that incorporate similar structures.

This month another study showed that cicada wings are also extremely hydrophobic; droplets pretty much jump off of the surface. The wings are thus self-cleaning. Again, one can think of multiple applications for an engineered hydrophobic material based on the cicada wing. Then again, there are many other examples of biological materials that have similar characteristics: lotus leaf, Namib beetle, etc. One interesting idea that Charles Choi brought up in his article (link below) is the use of cicada-wing technology in power plants. Jumping droplets would help dissipate heat.

Reference: Wisdom, K. M., J. A. Watson, X. Qu, F. Liu, G. S. Watson & C-H. Chen. 2013. Self-cleaning of superhydrophobic surfaces by self-propelled jumping condensate. Proceedings of the National Academy of Sciences of the USA.


The coverage of this story was, and still is, plagued by a #TaxonomyFail (pointed out to me by @BrianTCutting). Most of the coverage associated with this story showed a picture of a wet fly, sometimes a wet fly that was upside down. Soon I hope to add a picture to this post of a wet Brood II cicada. Stay tuned.

Thin film interface inspired by moth eyes

The insect eyes have it, again.

Moth eyes were the inspiration for a new multilayered material which may find application in optoelectronic devices such as solar cells. For at least 40 years we have known how nature solves the problem of light reflection. We only now have the imaging and manufacturing capabilities that will enable us to engineer and produce materials that mimic the most effective nanostructures.

Moths are generally nocturnal and any light the eye can “harvest” is a plus, reflection of light needs to be minimized.


Moth eyes reflect very little incident light. (Image by Daniel Meyer)

The “moth eye” principle was first described in 1973 by Clapham and Hutley. Their electronmicrographs showed that the surface of corneal lenses of moths are covered with conical nanostructures and it was proposed that these structures suppressed interference (reflection).

Over the past decade nanostructured materials mimicking the moth eye have been manufactured through techniques such as ion-beam etching, but application was limited because the material could only be manufactured at a small scale. Recently researchers at North Carolina State University were able to manufacture interfacial nanostructures protruding from a silicon layer into a overlaying thin film and thus eliminated interference effects. It remains to be seen if the manufacturing technique proposed in this recent work can be scaled up to produce consistent nanostructures at a reasonable cost.

Reference: Yang, Q., X. A. Zhang, A. Bagal, W. Guo & C-H Chang. 2013. Antireflection effects at nanostructured material interfaces and the suppression of thin-film interference. Nanotechnology


Ants tunneling, falling and catching themselves

Physicists and biologists worked together to explain how fire ants tunnel through the ground. The types of descriptions of locomotion will help engineers build more useful robots.

Obviously legs are important for locomotion on land, however, functional feet may not be just the distal end of a leg (cockroach). Also, appendages such as tails, are essential for dynamically stable locomotion (gecko). These types of biomechanical principles have already been incorporated into robots. Now a recent study from Georgia Tech shows that additional appendages, antennae, do not just serve as chemical or mechanical sensors. When falling the antennae help the ant grab onto the tunnel wall. Civil engineers might also learn from this biological example since ants build tunnels close in diameter to their own body length, no matter what the substrate, so that all legs and antennae can help get a grip when falling.

Reference: Gravish, N., D. Monaenkova, M. A. D. Goodisman & D. I. Goldman. 2013. Climbing, falling and jamming during ant locomotion in confined environments. Proceedings of the National Academy of Sciences.


Sound perception in moths

Turns out that the animal with the best hearing is the greater wax moth (one of the many scourges of bee keepers). Moths have a tympanum on either side of the abdomen. Each tympanum is innervated by just two sensory receptors. These receptors start firing at the slightest displacement of the “ear drum”.  Turns out that the greater wax moth can sense displacement caused by frequencies up to 300 kHz. In addition, this type of auditory system works at a wide range: from 20 kHz up to 300 kHz.  Engineers are keen on building a mechanoreceptor as sensitive to ultrasound as this, and with materials and structure as “basic” as a moth’s ear.

Interestingly ultrasonic sensors are preferred over photoelectric sensors in certain situations – now bioinspired technologies based on the moth eye (see above) and the moth ear may blur those distinctions.

Reference: Moir, H. M., Jackson, J. C. & Windmill, J. F. C. (2013) Biology Letters.


An illustration from British Entomology by John Curtis. Lepidoptera: Galleria mellonella

An illustration from British Entomology by John Curtis. Lepidoptera: Galleria mellonella

Jumping Robots

Also, everyone’s favorite feisty insect-inspired robot, Rhex, learned to jump.

Reference: Johnson, A. M. & D. E. Koditschek. 2013. Toward a vocabulary of legged leaping. Proceedings of the 2013 IEEE Intl. Conference on Robotics and Automation.



Not sure if this is biomimicry or bioinspiration, but it involves insects and it is cool:

It was a insect-spirational month! Let me know if I missed anything.

I wonder what June will bring.

The Dawn of the Artificial Coprophages

The Dawn of the Artificial Coprophages

A history of insect-inspired walking robots and how they “evolved”.

Earlier this year our Department of Entomology at the University of Illinois at Urbana-Champaign hosted the 3oth Annual Insect Fear Film Festival. This year’s theme was InsX-files and combined two “alternative” communities – those passionate about insects and those passionate about a TV show that has not been on the air for years, the X-files. You might be surprised to learn that even in the Midwest these communities can fill up a big lecture hall no problem (I was).


30th Insect Fear Film Festival Promotional Design (Theme: Ins-X Files). Designed by Joseph Wong for Illinois’ EGSA.

Special guests at the festival were series creator, writer, producer and director Chris Carter and the writer of some of the most popular episodes of the show Darin Morgan. (For scenes from the festival check out the tweets at the end of this post)

One of those episodes, entitled: “War of the Coprophages” (1996), was shown at the festival. This particular episode has achieved cult status here at Illinois because it features the character Bambi Berenbaum, who in her appearance and mannerisms is exactly like nothing like our fierce leader and Department Head May Berenbaum. (Morgan consulted various books authored by May and thus decided to give the fictional USDA scientist a name that honored her).

Another reason why I love this episode (besides the fact that it is basically a fantastic piece of suspenseful science fiction writing) is that it featured insect-inspired robots. In short, a town somewhere gets overrun with cockroaches that may be killing people. Some of the roaches appear to be mechanical rather than biological. Agent Mulder decides to visit a researcher named Ivanov at the Massachusetts Institute of Robotics to get a better idea about what engineers are up to.


(Mulder walks down the stairs and then a hallway. A small, insect-shaped robot walks down the adjacent hallway (and manages to erase the title of the location as he does somehow.) Mulder watches as it walks into a room, then comes out and looks at him. As Mulder takes a few steps towards him, the insect back away. Mulder follows the insect to a laboratory where the insect robot disappears. Mulder hears a similar whirring and turns around to see Doctor Ivanov approaching him on his wheelchair. The scientist talks out of a microphone that is near his throat. A laptop computer is hooked onto the wheelchair.)

IVANOV:For decades, my colleagues in artificial intelligence have attempted to create an autonomous robot. By struggling to give their machines a human-like brain, they have failed. A human brain is too complex, too computational. It thinks too much. But insects merely react. I used insects as my model, not just in design but by giving them the simplest of computer programs. “Go to the object. Go away from the moving object.” Governed only by sensors and reflex responses, they take on the behavior of intelligent, living beings.

MULDER: So this one is just programmed to head towards any object moving within the field of its sensors?


MULDER: Then why is it following me?

IVANOV: He likes you.

MULDER: Your contract is with NASA?

IVANOV: The goal is to transport a fleet of robots to another planet and allow them to navigate the terrain with more intricacy than any space probe has done before. It, it sounds slightly fantastic, but the only obstacle I can foresee is devising a renewable energy source. In any case, this is the future of space exploration. It does not include living entities.



Screenshots from the X-files episode “War of the Coprophages” showing two of the insect-inspired robots featured in the episode.


Darin Morgan could have gleaned inspiration from another University of Illinois Entomology Faculty member for ideas about robots, namely Fred Delcomyn who around 1996 was also working on a cockroach-inspired robot. Instead the Ivanov character is clearly based on MIT’s Rodney Brooks, a roboticist who, at the time, wanted to move away from incorporating Artificial Intelligence into robots and instead conceived of robots that were more adaptive to their environment. By programming only simple modules of behavior into the robot, rather than complex reasoning parameters, and let the robot thus react to the environment, Brooks felt that he could build some very functional robots. Much like the ones featured in the X-files episode.  Brooks’ mid-nineties robot is named Genghis (~1991). Genghis was the first robot created by the iRobot Corporation (now of Roomba fame) and was intended for possible planetary exploration.  Other insect-inspired robots from Brook’s MIT “Insect Lab” includes Boadicea which employs a differential leg design to allow for longer stride frequencies and an increase in speed (the cockroach Blaberus discoidalis served as the model). Both Genghis and Boadicea are robust to failures in leg function, much like animals that can adopt a compensatory gait. Choosing robustness over perfection is a characteristic that shows up again and again in successful bioinspired robot design.


A hexapodal robot named Genghis from the Brook’s lab at MIT (designed around ’91). The robot was also relatively cheap thanks to innovative construction methods. Genghis used 4 microprocessors, 22 sensors, and 12 servo motors. (Picture from

Around the same time that Genghis became famous other research groups in the United States also started building walking robots that incorporated the biomechanics of actual terrestrially locomoting insects.  I review some of the more successful projects here.

Why build robots based on insects?

  • Insects exhibit behaviors that are considered relatively simple, and thus easier to emulate. The resulting behavi0r may appear complex or purposeful to the observer but it is actually derived from fairly simple rules on how the nervous system perceives environmental inputs and how an internal “neural” pattern generator relays this information to “external” mechanical components (muscle, legs). Of course, “simple” is relative. Different situations may also result in different behaviors (and neural input). For instance, when cockroaches are close to wall they tend to amble, at this speed the animal is very sensitive to nervous feedback from its surroundings, each individual leg is more sensitive to this feedback. When roaches trot really fast across open spaces then a central pattern generator may “suffice”. This CPG generates rhythmic movements in a neural circuit, with little feedback from the environment.
  • In addition, the exoskeleton and the muscles stabilize insects without the involvement of the nervous system. Hexapod locomotion is dynamically very stable (this claim was conclusively proven by adding jet-packs to roaches…oh, yes, indeedy). Just like its model insect-inspired robots basically uses 2 tripods for locomotion; at any time during the gait the insect has three feet on the ground. The sprawled posture also results in passive stabilization of lateral motion, it is very difficult to push over an insect or a robot using 6 legs. (For a very detailed explanation of these two points please watch this March 2013 seminar by Princeton’s Philip Holmes)

Cockroach tripod 2013-05-23 (10.33.59-438 PM)

Phase Diagram 2013-05-23 (10.33.59-186 PM)

Top figure: Cockroaches walk with a tripod gait: they always keep one tripod of legs (the foreleg and hindleg from one side and the middle leg from the other) in contact with the ground, alternating the tripods as they walk.  In the bottom figure are respresented the stance phases of the two different tripods (red or blue) (Drawings by Marianne Alleyne)

  • Another goal of roboticists has always been to miniaturize their creation. Making cheap little robots is still the goal. Smaller robots can potentially survey areas that are currently not accessible. Also, if you have multiple smaller robots available then you can send more to one area, each carrying cameras and chemical sensors, while a robustness (missing or non-functioning individual robots) is built into the system. As we shall see, miniaturizing brings its own challenges. Insects are small, some insects live in social groups, so there is lots to learn about miniaturization and swarming from them.
  • It is also much easier to make a robot that has an exoskeleton that is segmented (rather than an animatron that has an endoskeleton). Insects are segmented animals and in some of the insect-inspired robots we see this segmentation too because it increases flexibility.

Since the 1996 episode of the X-files many other insect-inspired walking robots have spawned. Even evolved.

1. RHex – Robotic Hexapod.

Insects such as cockroaches served as the biological inspirations for RHex. Data on bio-mechanics and dynamics of insects maneuvering over rough terrain were obtained by the researchers from the PolyPedal lab at UC Berkeley (Robert J. Full is the primary investigator of the lab) (For full disclosure the author of this blog was once an undergraduate in the PolyPedal lab working on the energetics of locomotion in crustaceans). (Bob also gave 3 very informative TED talks)

Terrestrial animals (bipeds, quadrupeds, hexapeds, octopeds) all rely on a spring-mass system where the limbs (incl. muscle and cuticle) have a spring-like function to help support the animal’s weight over the course of the stride (larger animals have stiffer springs). In addition, the neural control of muscle action during walking and running is linked to muscle stiffness and thus the spring.

The biological data was then used by engineers Dan Koditschek (at the University of Pennsylvania), Al Rizzi (Carnegie Mellon University) and Martin Buehler (then at Boston Dynamics) to build a robust autonomous robot that was able to transverse uneven ground without actual terrain sensing or actively trying to control adaptive maneuvers.

Despite the fact that RHex legs have many degrees of freedom (many legs, joints and actuators), by incorporating real biological data and following the simple rules of a spring-mass system a robot was created that is quick (as measured in body lengths per second), maneuverable, and robust.

One of the most striking advancements of RHex was the compliant legs which were made of materials that helped with dynamic stability, shock absorption, energy efficiency, enhanced gait control, obstacle avoidance, etc. (RHex is now part of the Boston Dynamics robot-thoroughbred stables)


One generalized version of RHex (Robotic Hexapod), the first legged robot to run over uneven terrain, and the first autonomous legged platform to run at speeds above one body length per second. (Drawing by Marianne Alleyne)

Since funding for RHex started in 1998 RHex has evolved into different versions (species?). By 2012 feisty RHex had developed into this:

And very recently it was announced that RHex is also able to leap.

There is also a a cost-efficient education and research version called EduBot.

(For some great pictures and video of RHex click on this Boston Dynamics website).

For an explanation on how you can use biological research (by Joe Spagna and others) done with RHex in your college courses and outreach project click here.

2. Sprawl

Whereas I have always found RHex to have a spunky personality the robot Sprawl to me seemed to have something sinister about it. Must be because of all the wires and (pink!) tubing. Of course, some of the more “evolved” versions have names such as Franken-Sprawl or Sprawlita which does not help them win cuddliest-robot contests.

Member of the Sprawl family. One of the first fully dynamic locomoting hexapods. (Drawing by Marianne Alleyne)

Member of the Sprawl family. One of the first fully dynamic locomoting hexapods. (Drawing by Marianne Alleyne)

The Sprawl family of robots were created by Mark Cutkosky‘s group at Standford University’s Center for Design Research, again using data from Berkeley’s Polypedal lab. The Sprawl robot incorporates biological principles not only in its leg arrangement and design, but also in its construction and in the material properties of its structure. The robot was made using (then) modern manufacturing techniques (shape deposition manufacturing) to create limbs of the right shape and with the desired material properties, like stiffness at certain critical points. Early Sprawl robots used pneumatic actuators, whereas the later iSprawl robots used electric motors and flexible cable drives. The final result is a sturdy and super-fast robot that resembles a scurrying cockroach. Over the years Sprawl (now called Sprawlettes) have become smaller and smaller (currently you can hold one in the palm of your hand) and they can now be batch-manufactured.

3. Whegs

Another successful collaboration between biologists and robotocists can be found at Case Western Reserve University. Since the 1990s Mechanical Engineer Roger Quinn’s group has used data from neuroscientists such as Roy Ritzman to build cockroach-inspired robots that can walk and climb (for instance, the hexapod Robot III from ~1999). One line of robots is the WHEGs family of robots which use a Wheel-Leg hybrid. The robot was inspired by the European Space Agency’s Prolero robot and RHex, but instead of using 6 motors to drive individual legs (as RHex has) it only uses one powerful one, which can distribute its power to all or just a few of the legs.

Whegs...(Drawing by Marianne Alleyne)

Representation of an early model Whegs: this robot comines the advantages of wheels (speed) and legs (maneuver over obstacles) (Drawing by Marianne Alleyne)

The later models of Whegs mimic cockroach maneuverability to manage uneven surfaces. In addition, cockroach behavior during locomotion is copied by adding a variety of sensors. Cockroach rely on antennae to guide them over and under obstacles.  Whegs robots are fitted with mechanical antennae that mimic the movements of the cockroach antennae and to help the robot “make decisions” about the best way forward.

The future is here

All the robot research groups that have been working on insect-inspired robots such as Genghis, RHex, Sprawl and Whegs, and the students that came out of these laboratories to start their own groups, have branched out into other areas of research (some of which involve insects). The focus may have shifted to:

The biggest challenge to robotics is powering small insect-sized robots. We can still learn a lot from insect’s operational duration. Making a robot work for 5 min is great. However, insects work for days on end. We need to incorporate similar power management strategies and power budgets into our robots. This becomes even more critical as we scale down in size because available power doesn’t scale linearly with length. Less power can be stored per unit volume as you get smaller because the power/packaging ratio goes down. The miniaturization and power issue is especially critical for developing smaller flying robots. (Insect flight will be covered in a later blog post)

One area where we can also still learn from insects, and which in my mind has been somewhat ignored, is the fact that insects can recycle large parts of their exoskeleton...maybe this can become a focus too. I will explain more about the beauty of the materials that make up the insects exoskeleton in one of my next few blog posts.

Until then, all you need to remember about this post is that “The truth is out there”.

#IFFF30 Recap:

Some day, I will click that publish button, and you will all be amazed!

Just not today.
I think I need to prioritize. Learn to put this blog a little bit higher up the to-do list. After family-maintenance, student-learning, lab-running, colleague-meeting, friendship-maintenance, and such. Maybe it should come before Breaking Bad watching?  Neh…
So stay tuned. Tomorrow I am heading out to ScienceOnline, my second scio conference, and I will come back inspired. And I will click the publish button on all those fun drafts about what we can learn from insects for new innovative technologies. So get ready…but watch some Breaking Bad first, if you want.
