Insects have advanced degrees in Material Science and Manufacturing

There is much to learn from nature about biological materials – materials produced by a biological system. Just think about the materials in nature that you are most familiar with: wood, wool, cotton, shells, skin….consider:

  • Animals and plants are constructed from materials that are readily at hand – no dangerous mining endeavors in geo-politically sensitive areas. Sea shells are made from materials available in the sea water. Bone is made from components available in our (and our mother’s) diet. Insect cuticle is synthesized from maternal sources and from the individual’s diet.
  • The materials found in nature have many of the same attributes as engineered materials, yet avoid the heat-beat-and-treat manufacturing methods that are so costly to us and our environment. We manufacture materials by applying large amounts of energy so we can first homogenize materials, then add even more energy, and dangerous chemicals, to impose the structure that we want.

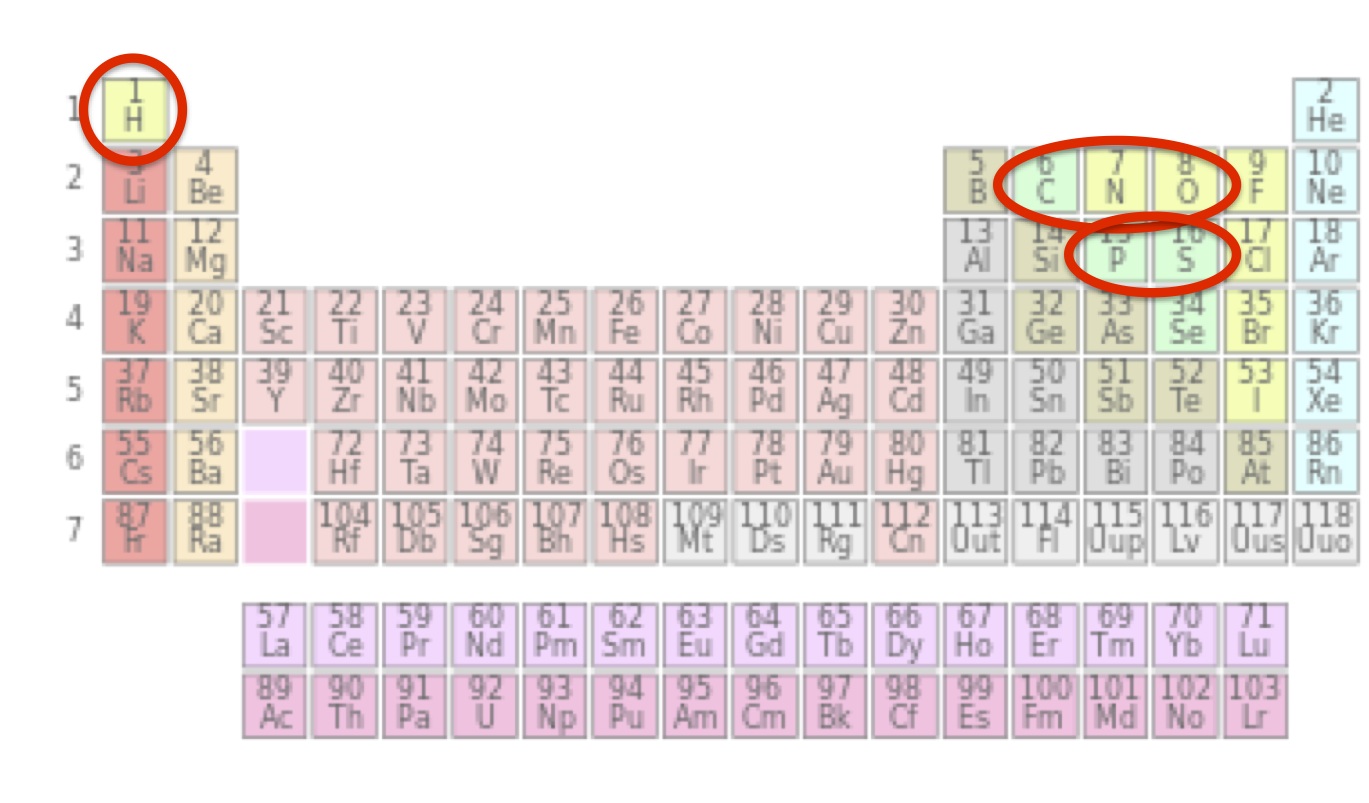

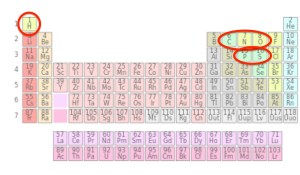

  • The periodic table categorizes more than 100 elements. Although around 25 types of elements can be found in biomolecules, only six elements are most common. These are carbon, hydrogen, nitrogen, oxygen, phosphorus, and sulfur. Few metals are used by nature, although iron, zinc, and manganese are essential in various ways.

PeriodicTable6If you create and then overlay* Ashby plots of biological and engineered materials you will learn that nature has many more tricks up its sleeve than we do. Insect cuticle is very similar to skin and bone, and some of the engineered materials, it is also ubiquitous, yet we know still so very little about it.

Collection of live and preserved insects hanging out in the Alleyne-lab. All insects have a cuticle with the same basic building blocks. But the cuticle of different species, or even different life stages, differ in hardness, flexibility. permeability, color, etc. (Photo: Marianne Alleyne)

At first glance the structure that is a characteristic of insects and other arthropods, the cuticular exoskeleton, seems such a simple yet sophisticated material. Upon closer inspection it is actually maddeningly complex and enigmatic, just ask any researcher working on it (needless to say, there aren’t too many). The chemical analysis of the insect cuticle is a frustrating undertaking.  Perform any manipulation to isolate it and “voila” the structure in which you were interested has been changed. The cuticle has been described by biochemists as “intractable.” It is possible to (partially) dissolve cuticle in various solvents and analyze the results, but the results are quantitative, both because it is not easy to break apart the assembled materials, but also because chemical transformations can occur during the process of dissolution. In the future multidisciplinary (including molecular) approaches may give us more insights into the exact composition of different types of cuticle. Maybe we will soon learn ‘why some bugs go “squish” when you step on them, but others go “crunch” even though they made out of same material’

As an old seasoned insect physiologist I am still amazed by the insect cuticle since it can have varied structure at the meso-level (allowing insects as a group to live out many life histories), yet the basic (nano-, micro-) structure and components of the cuticle are not numerous or terribly exotic. The insect cuticle is all around us, it is what makes the insects so successful.

The cuticle is produced at atmospheric pressure and at temperatures that are not extreme. Simple building blocks, mainly chitin, proteins and water, make up the insect cuticle. It can have many different features and characteristics just because the building blocks occur in different ratios or orientations. Large amounts of the cuticle are recycled by the individual insect itself, and the remainder can easily be broken down by other life forms.

Can we humans manufacture such an amazingly versatile material in a similar manner?

To manufacture anything close to the insect cuticle we need to understand the characteristics of the material. The characteristics of biological materials, that set them apart from most synthetic/engineered materials, were recently defined and listed by Meyers et al. (1). (The closed-loop cycle characteristic of the cuticle is rather unique to arthropod cuticle and should be added to the list when considering the insect cuticle).

  1. Multi-functionality
  2. Hierarchical structure
  3. Self-assembly
  4. Hydration
  5. Mild synthesis conditions
  6. Self-healing capabilities
  7. Closed-loop cycle
  8. Evolutionary and ecological constraints

Over the next few days/posts I will discuss each characteristic as it relates to the insect cuticle. At the conclusion of the series I will discuss how they all combine and result in the interesting mechanical properties of the insect cuticle, and how cuticle-inspired materials might become useful.

*Feel free to contact me for Bioinspiration learning module using Ashby plots.

References:

  1. Meyers, M. A., J. McKittrick & P-Y Chen (2013) Structural Biological Materials: Critical Mechanics-Materials. Science V339, pp 773-779. DOI: 10.1126/science.1220854

Next: the multi-functionality of the insect cuticle.
